VSP500

Technical parameters：
1、Industrial Ethernet switches are designed for reliable and stable operation in harsh industrial environments.
2、Support IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at protocol, support 10/100/1000Mbps RJ45 port, full dual duplex/half duplex.
3、Support DC12V~DC48V wide power input, POE output is valid only when the power input is 48V (≥96W), At this time, the average actual output power of each POE is approximately 23W;
4、Two stage overvoltage protection for power input (cut-off voltage 54V~59V), reverse connection protection for power input (maximum allowable voltage 54V for reverse connection).
5、The working temperature is -20 ~ 55°C, and the one-piece thickened aluminum alloy shell is more conducive to use in harsh industrial environments, with fast heat dissipation and durability.
6、The use of industrial temperature compensation devices is helpful for the switch to maintain a lasting and stable communication rate.
7、It can be easily installed on DIN rail and installed in the distribution box. DIN rail installation and metal shell with LED indicators make the switch easy and reliable to plug and play.
VS500

Technical parameters：
1、Industrial Ethernet switches are designed for reliable and stable operation in harsh industrial environments.
2、Support IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3z protocols;
3、Support Gigabit 10/100/1000Mbps RJ45 port, full duplex/half duplex.
4、Support DC12V~DC48V wide power input;
5, power input two-stage over-voltage protection (shutdown voltage 54V ~ 59V), power input reverse connection protection (reverse connection allows the highest voltage 54V).
6, operating temperature -20 ~ 55 ° C, one-piece thickened aluminum alloy shell, more conducive to use in difficult industrial environments, fast heat dissipation and strong and durable.
7, the use of industrial temperature complementary devices, conducive to the switch to maintain a durable and stable communication rate.
8, can be easily DIN rail mounted as well as installed in the distribution box, DIN rail mounting and metal housing with LED indicators, so that the switch plug and play become simple and reliable.
VAR1200-L

Technical parameters：
1. Industrial grade Gigabit wireless WiFi bridge relay;
2. Support wide voltage DC12V-48V power supply, two-level automatic overvoltage protection;
3. Support both 2.4G frequency band and 5G frequency band;
4. Support 802.11ac, 802.11a, 802.11n and other WiFi transmission protocols;
5. Wireless transmission rate: 300Mbps(2.4G)+900Mbps(5G);
6. Transmit power: 2.4G 17dBm/25dBm, 5G 18dBm/23dBm optional;
7. Intelligently automatically turn on the cooling fan;
8. Support 3 RJ45 network ports and support POE power supply at the same time;
7. Barrier-free transmission distance:2.4G 300 meters ;
8. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications;
9. Using digital-analog temperature compensation and frequency stabilization technology, the WiFi signal is more stable and not easy to drop;
VSP510

Technical parameters：
1. Industrial Ethernet switches are designed for reliable and stable operation in harsh industrial environments;
2. Support IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at protocol, support Gigabit SFP port (optical module) and 10/100/1000Mbps RJ45 port, full duplex/half duplex;
3. Support DC12V~DC48V wide power input, POE output is valid only when the power input is 48V (≥96W);
4. The working temperature is -40 ~ 55°C, and the one-piece thickened aluminum alloy shell is more conducive to use in harsh industrial environments, with fast heat dissipation and durability;
5. The use of industrial temperature compensation devices is helpful for the switch to maintain a lasting and stable communication rate;
6. It can be easily installed on DIN rail and installed in the distribution box. DIN rail installation and metal shell with LED indicators make the switch easy and reliable to plug and play.

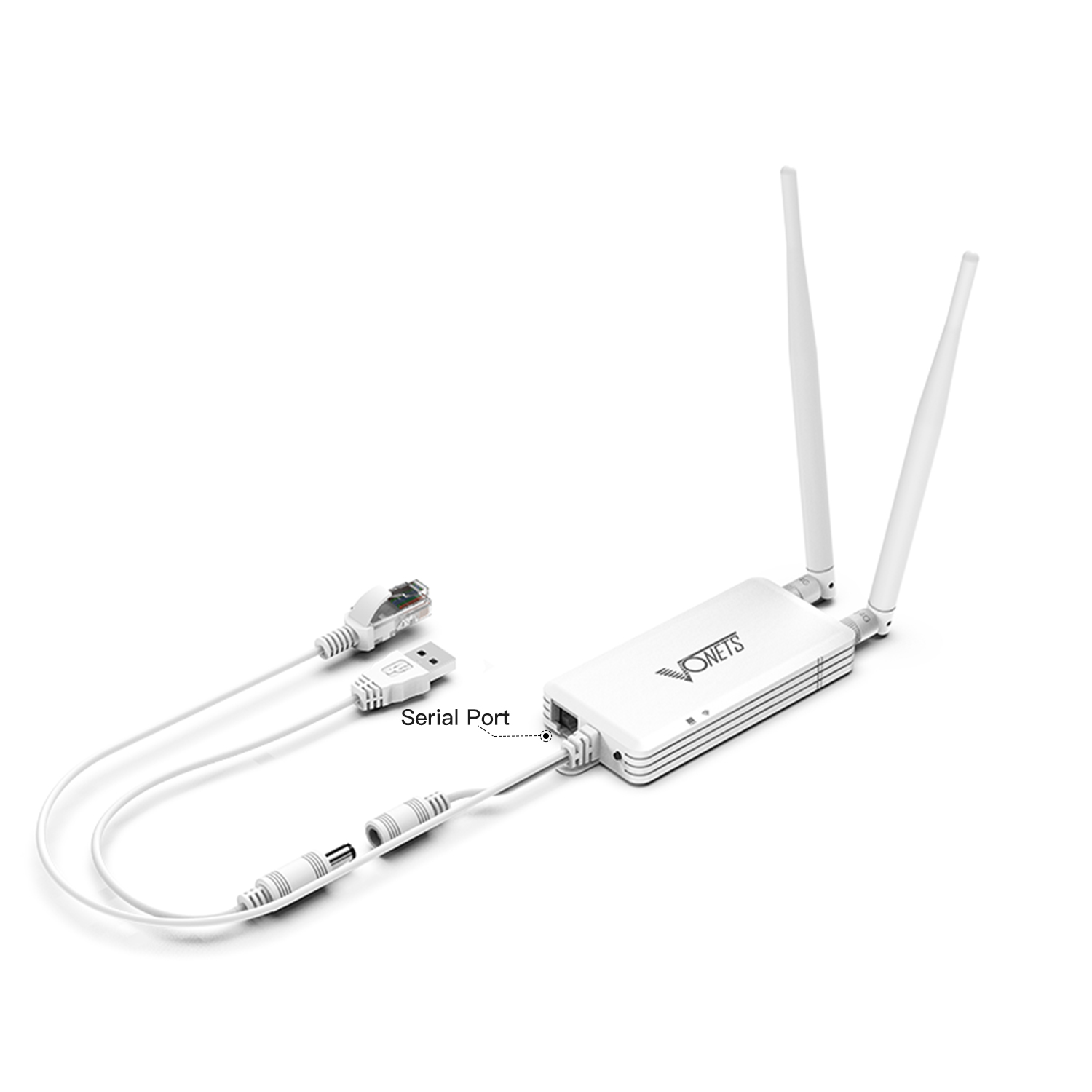

VAP11S-232-CX

Technical parameters：
1. Industrial-grade 2.4G WiFi bridge/repeater/Serial Server;
2. Support wide voltage DC5V-24V power supply, two-level automatic overvoltage protection (protection voltage upper limit 29V);
3. The output power of the power supply is not less than 10W (typical power supply 12V/1A);
4. Average module power consumption: ≤2.5W;
5. Video stream encryption and decryption function, the use of surveillance equipment to more effectively protect the security of the video stream;
6. Wireless transmission rate: 300Mbps,Transmitting power: 19dBm/23dBm optional;
7. One 10/100Mbps adaptive Ethernet port, 3) One RJ45 female connector (UART serial portx2);
8.WIFI/network port/serial port two-way transparent transmission, one-to-one/one-to-multiple transparent transmission;
9. Point-to-point barrier-free maximum transmission distance: 300-600 meters;
