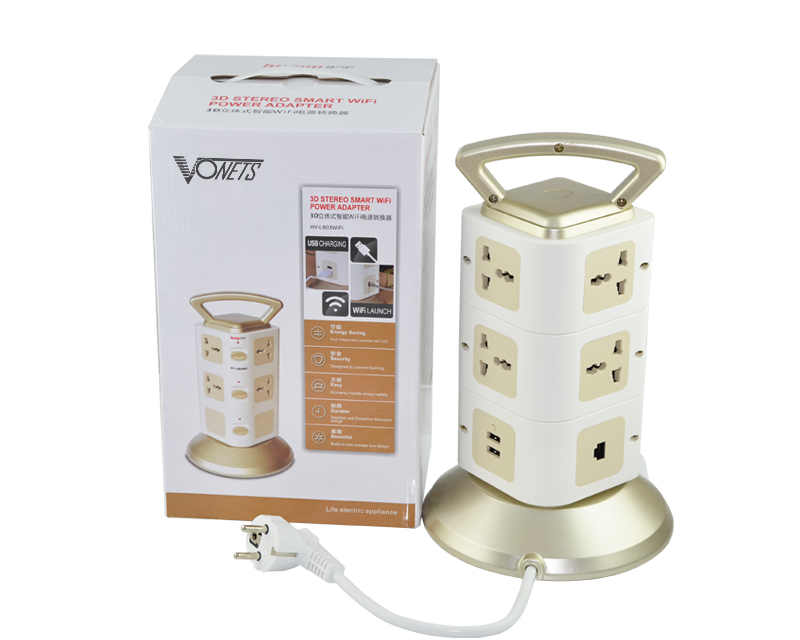

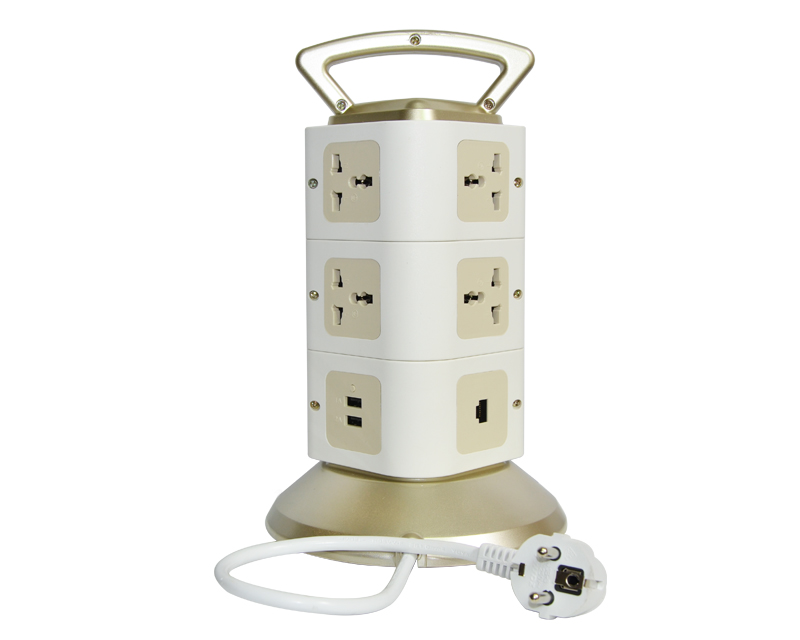

WiFi-SB-L3 is a 3D stereo smart wifi power socket,together with power charge,WiFi repeater,WiFi router function.
1.3D stereo smart wifi power socket;
2.Rated current:10A;
3.Nominal voltage: 250V;
4.Rated power:2500W;
5.USB output:DC5V，2A;
6.2A charger,automatically suit for most smart phones and laptops;
7.Support WiFi router mode and WiFi intelligent bridge mode.
8.WiFi intelligent bridge function, wired to wireless, wired to wireless smart switch.
9.In WiFi intelligent bridge mode, it supports WiFi hot spot scan automatically and WiFi hot spot memory function.
10.Completely external, standard RJ45 Ethernet connections, without driver can be used to access any IP devices;
11.Using IEEE 802.11g, IEEE 802.11b, IEEE 802.11n technology;
12.300Mbps transfer rate.
13.Support WEB remote firmware upgrade, can get the latest firmware for free.
14.Original creation VDNS virtual domain configuration technology solves the user’s trouble of configuration.
15.Support WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism.
16.Support more than 20 simultaneous connections WiFi terminals
17.No barrier transmission distance: 100 meters.
|

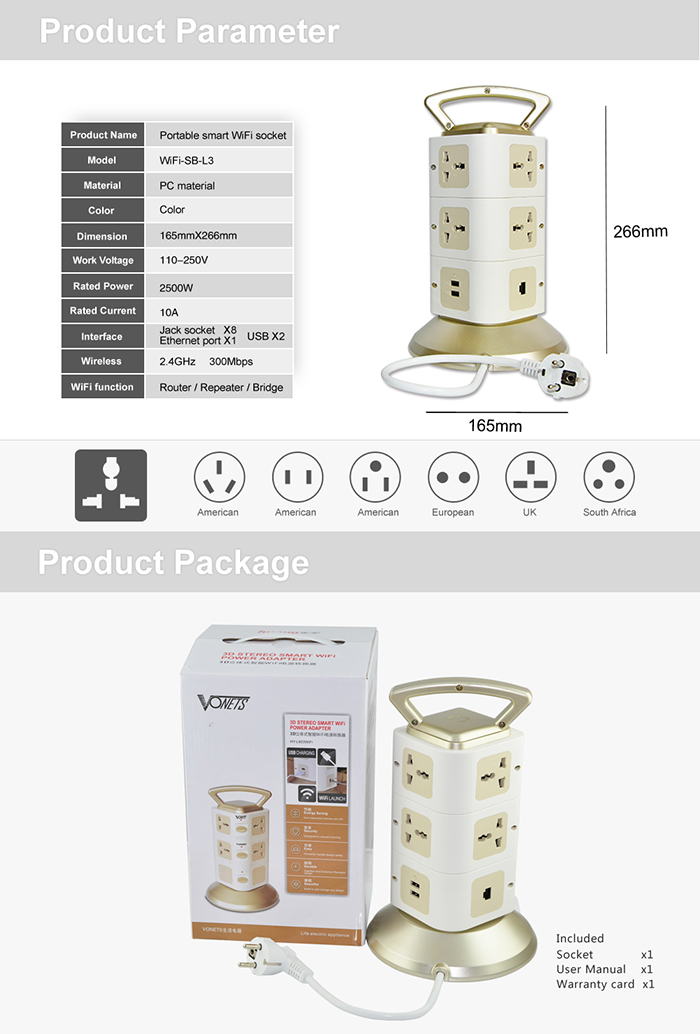

Hardware Specifications | ||
|
The socket part | ||
|
Rated current |
10A | |
|
Nominal voltage |
250V | |
|
Rated power |
2500W | |
|
wire length |
2 meter | |
|
Plug type |
EU | |
|
Connector |
8 pieces 3-hole socket | |
|
Dimension |
165mm x 165 mm x 278 mm（L x W x H） | |
|
The charging part | ||
|
Connector |
2 USB port,Used to supply power for other devices: | |
|
The WiFi Module part | ||
|
protocol standard |
Using IEEE 802.11g, IEEE 802.11b, IEEE 802.11n technology | |
|
wireless transfer rate |
300Mbps | |
|
Connector |
One 10 / 100M adaptive Ethernet Socket | |
|
Button |
Reset button (long press release about 3s) | |
|
LED |
status indicator: | |
|
antenna |
Built-in intelligence omnidirectional antenna | |
|
Wireless related | |
|
Basic functions |
Wireless Switch |
|
working Mode |
Smart WiFi bridge mode: |
|
Wireless Security |
WiFi MAC address filter WiFi Security function switch 64/128/WEP encryption WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism |
|
Wired Related | |
|
WAN port settings |
WiFi Router mode: WAN port connection type supported: PPPoE, Dynamic IP, Static IP, L2TP, PPTP |
|
Firewall |
WiFi router mode: IP and MAC address binding against ARP attacks (WiFi router mode support) IP address filter (WiFi router mode support) Domain filter (WiFi router mode support) Mac address filter(WiFi router mode support) |
|
Forward rules |
Port forwarding (WiFi router mode support) Virtual Service (WiFi router mode support) DMZ Host(WiFi router mode support) |
|
System Function |
Restart device Reset factory Administrate account and password revise Firmware upgrade |
