VAP11G-300
Hits:2735

VAP11G-300 is a professional 300M WiFi repeater that is elaborately developed by HouTian Network, the original creation D/A temperature compensated auto frequency control technology (TAFC), it solved the common failing of the traditional WiFi signal or WiFi products that easily drop the network, make sure the lasting stability to ensure that the WiFi signal is not dropped. It is based on IEEE 802.11N standard, can extend WiFi Network range, provides the stable transmission up to 300Mbps, also is compatible with IEEE 802.11B and IEEE 802.11G standard.

VAP11G-300 is an environmentally and safe WiFi signal repeater. Working in the repeater mode, VAP11G-300 can be doubled to extend the original WiFi signal coverage, while it can ensure the security of the WiFi signal, its working principle is: at the edges of the original WiFi hotspot signal coverage, the VAP11G-300 that in "repeater mode " is able to receive weak WiFi signal, and then zoom in to the normal, safe strength, and after optimization, error correction processing, to achieve signal coverage distance doubled extension under safe. This differs from traditional WiFi signal amplifier - only amplifies the signal and ignore the WiFi security.

1. Environmental, Safe, Portable, Mini.
2. Input voltage (DC5V-15V), Needn’t extra power supply,  reducing e-waste.
3. Support 802.11b/g/n WiFi transmission protocol, 300Mbps rate of transmission.
4. 2.4G RF power: 14.5dBm/16dBm optional.
5. The transmission distance (without obstacle) : 80meters;
6. WiFi hotspot memory, maximum memory 100 hotspots;

7. Support connecting more than 20pcs WiFi terminal at the same time.
8. Professional smart WiFi repeater.

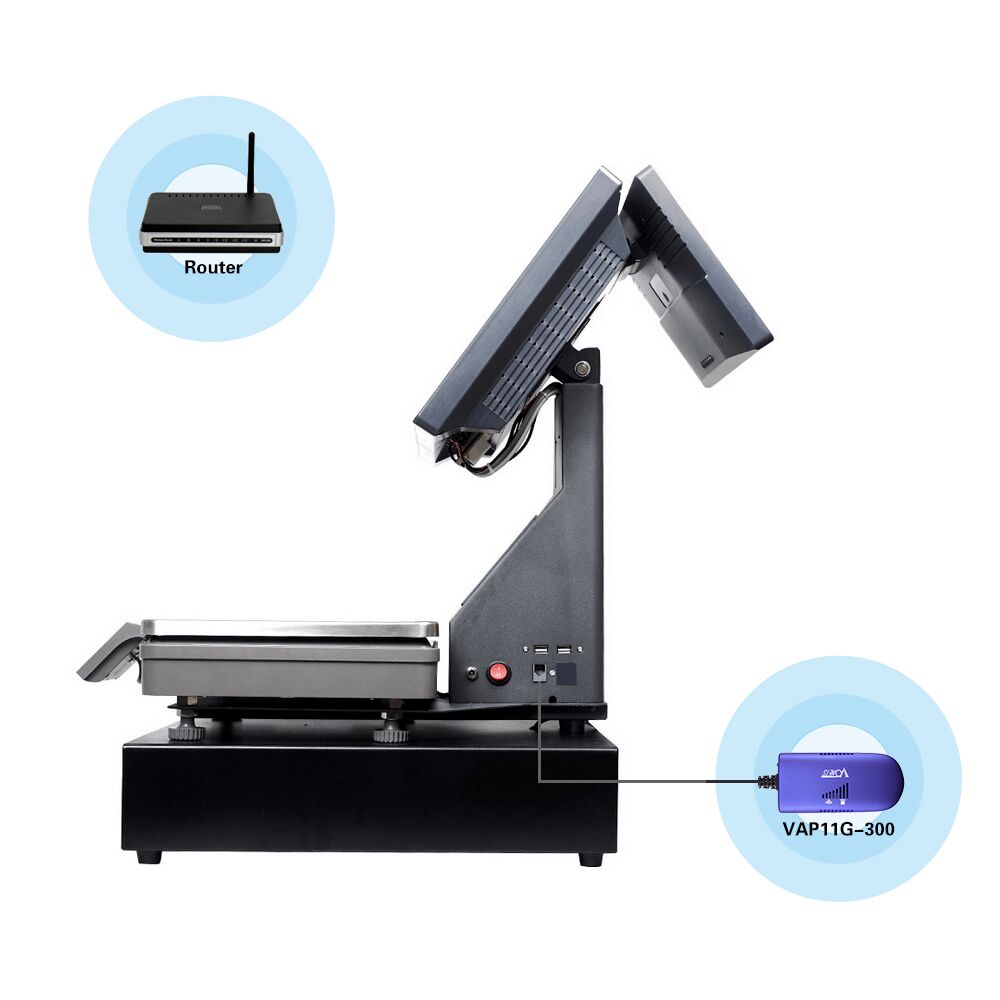

9. Electronic scales dedicated WiFi bridge/WiFi bridge.
10. WiFi smart bridge function, WiFi to wired, wired to WiFi, smart exchange.
11. WiFi smart repeater mode, it supports WiFi hotspot scan automatically and WiFi hotspot memory function.
12. Support turn off the WiFi hotspot function.
13. Support WEB remote firmware upgrade, can get the latest firmware free.
14. Support local WEB management, Chinese and English configuration interface.
15. It can be USB powered, easy to use mobile power supply.
16. Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped.
17. Original creation VDNS virtual domain configuration technology to solve the user’s trouble of configuration.
18. Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism.

In the software operation, Houtian network uphold the consistent simple, user-friendly design, abandoned the verbose of IP setup for traditional WiFi repeater, using the virtual domain configuration techniques(VDNS)configuration, and also support the use of IE browser configuration and PC-specific software configuration(no IP connection), on the steps, it is even more concise, no redundant operations, which greatly facilitates the use of different levels of user.

Hardware Spec

Protocol Standard

IEEE 802.11g, IEEE 802.11b, IEEE 802.11n

Rate of transmission

 300Mbps

Interface

 1 DC2.0 power hole;

1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M

adaptive Ethernet cable;

Button

 Reset button (long press 5 seconds)

LED

Status instruction:

WiFi state/Hotspot connection state (blue light);

Ethernet port state (light green for success);

Antenna

  Built-in 2pcs Smart omnidirectional 2dbm Antennas

Size

 90mm x 45mm x 15mm(L x W x H)

WiFi Related

Basic Function

Channel option: 1-14;
WiFi Hotspot scan automatically;
WiFi Hotspot memory;
WiFi Hotspot switches.

Working Mode

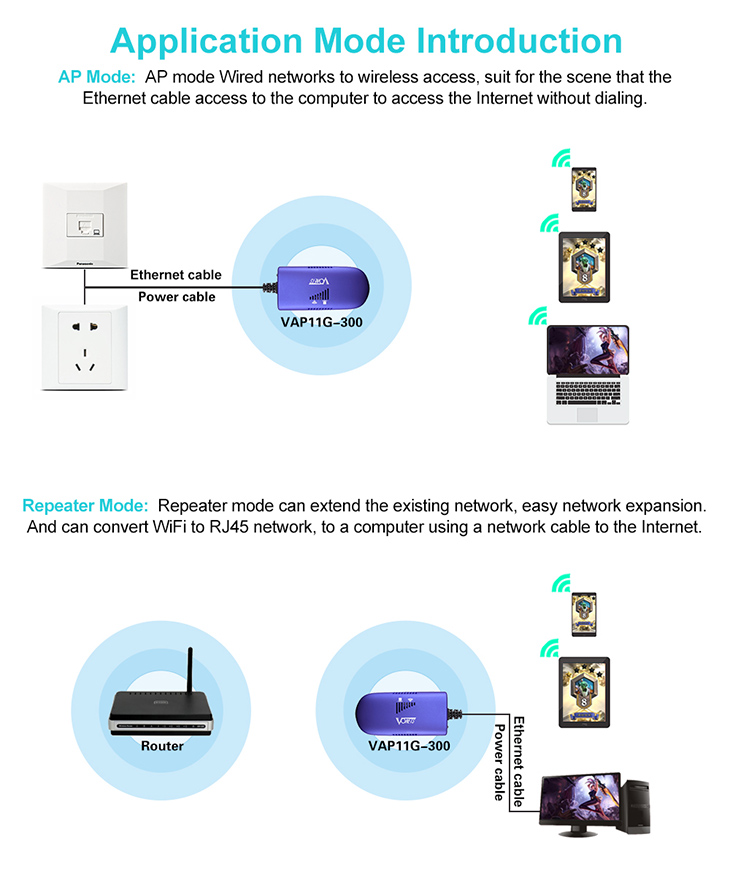

WiFi smart repeater mode:
Repeater mode (WiFi signal repeater), it can extend the distance of WiFi transfer;

WiFi Security

64/128/WEP encryption
WPA-PSK/WPA2-PSKWPA/WPA2 security mechanism

System Function

Restart device
Reset factory
Administrate account and password revise
Firmware upgrade
