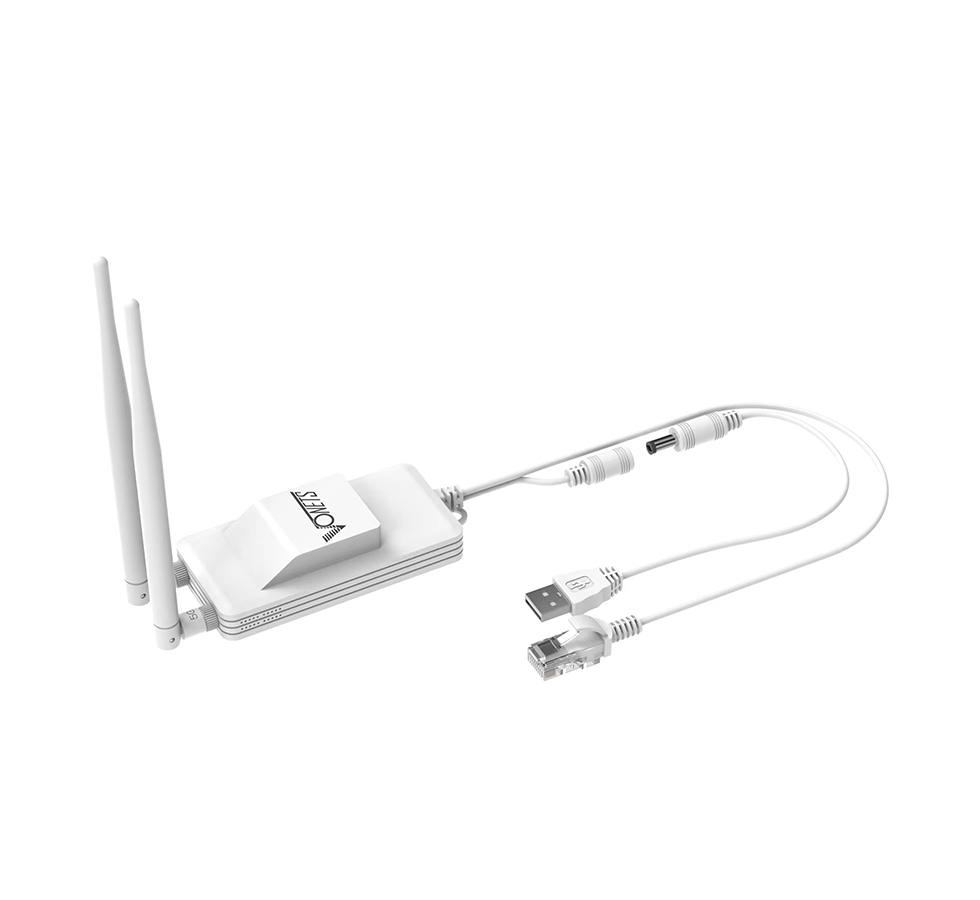

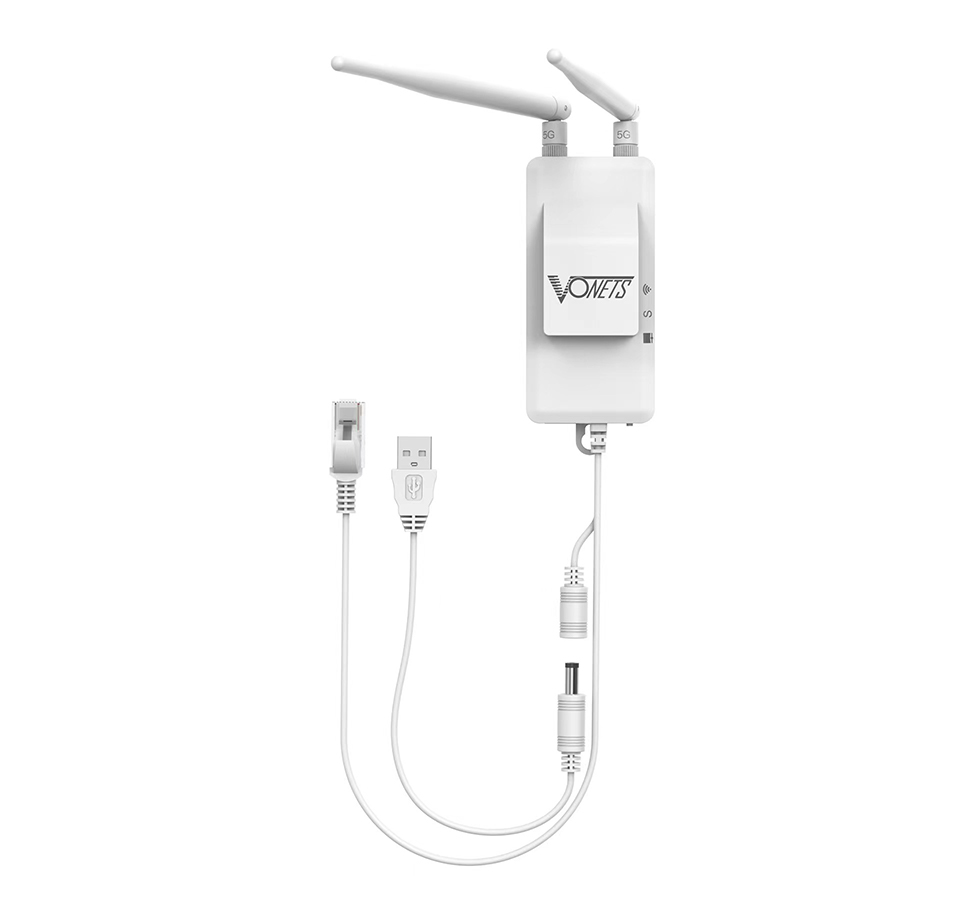

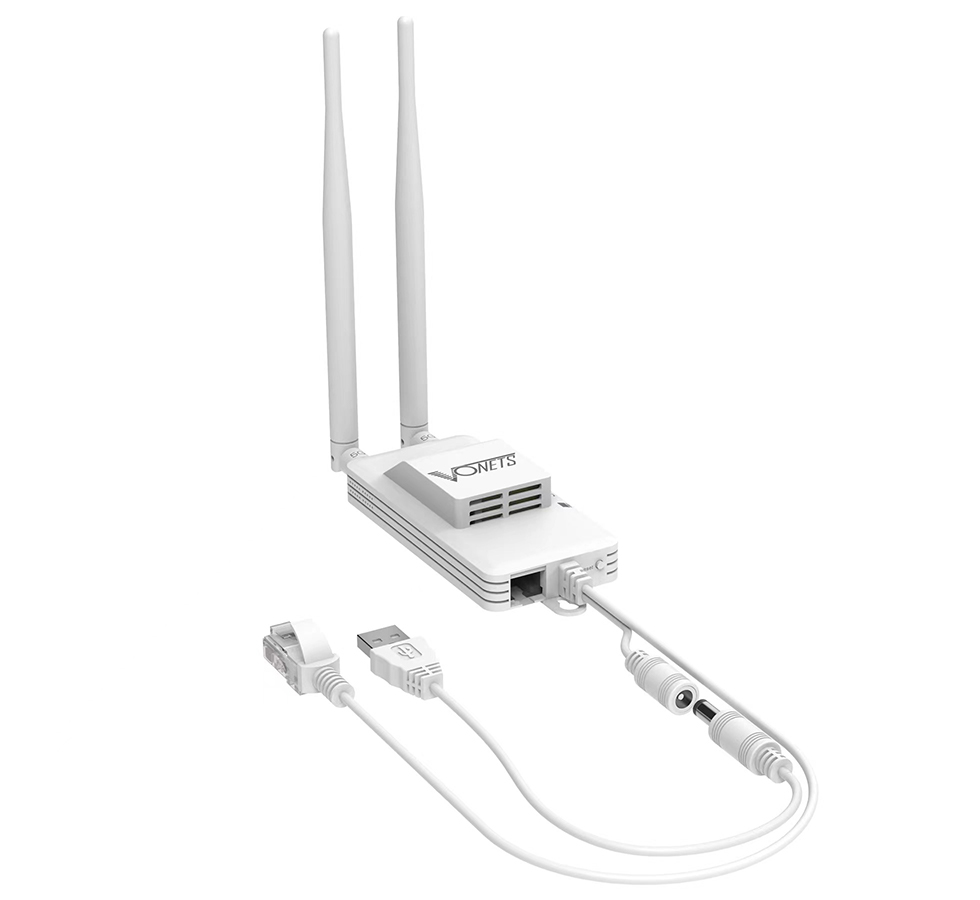

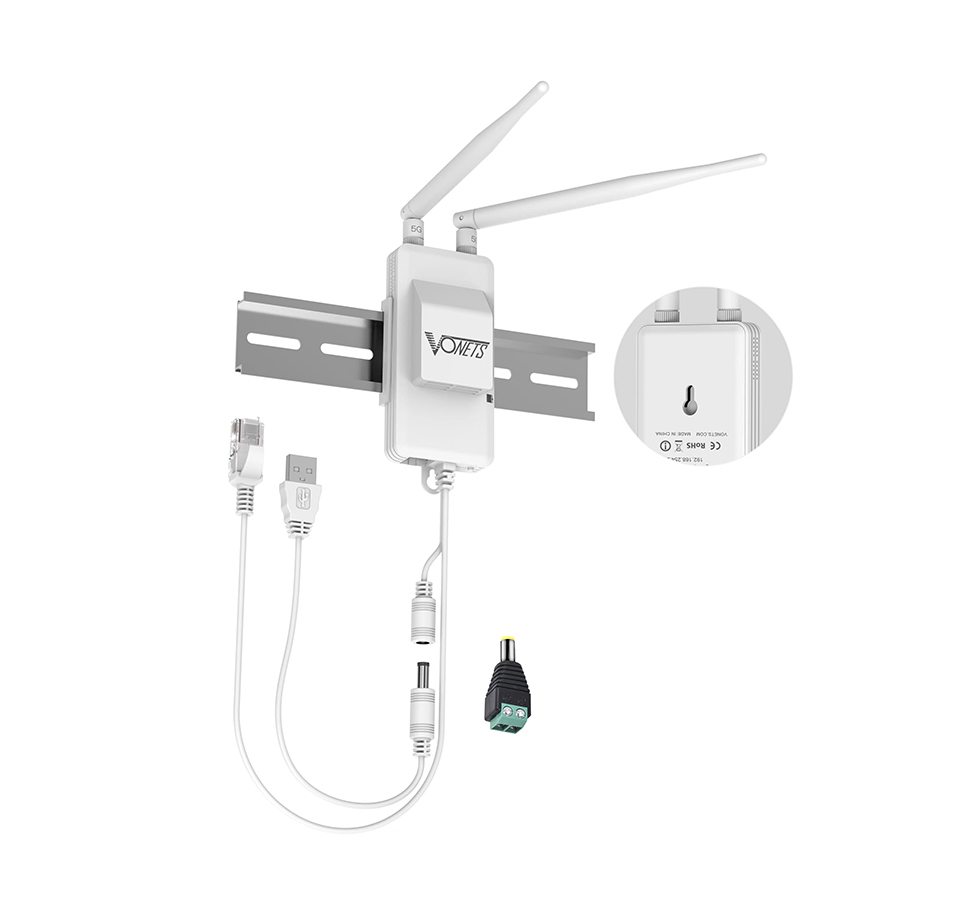

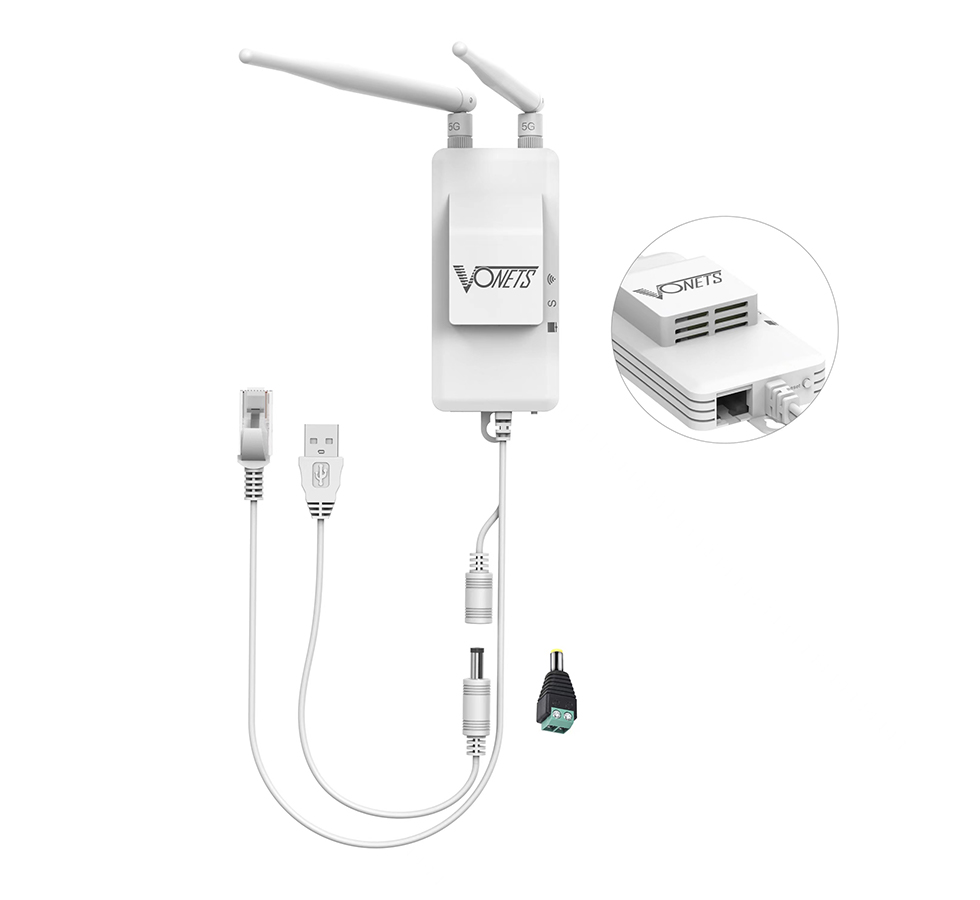

1. Industrial 5G WiFi bridge/repeater/router;
2. Support wide voltage DC5-24V power supply, two-level automatic overvoltage protection, overvoltage protection point 29V;
3. Support 802.11AC, 802.11A, 802.11N and other WiFi transmission protocols;
4. Wireless transmission rate: 900Mbps;
5. Transmission power: 19dBm/23dBm optional;
6. Maximum point-to-point barrier free transmission distance: 500m;
7. Built in 2 high-power FEM, built-in intelligent automatic start stop cooling fan
8. Two external 3dBi antennas can be extended through extension lines (optional);
9. Two 10/100Mbps adaptive Ethernet ports, and options for expandable Ethernet ports (one for two);
10. WiFi hotspot memory, with a maximum memory of 100 hotspots;
11. Support the simultaneous connection of more than 20 WiFi terminal devices;
12. Adopt VDNS virtual domain name configuration technology to reduce user configuration difficulties;
13. Support the manual closing of SSID broadcast and WiFi hardware;
14. Support SSA signal strength detection and reporting function to achieve WiFi mobile positioning;
15. Support the import and export function of configuration parameters to facilitate the batch configuration of engineering projects;
16. Support IP layer transparent transmission and MAC layer transparent transmission bridge modes to meet various bridge applications;
17. IP layer transparent transmission (factory default), transparent transmission of IP layer data, which can meet most of the bridge applications;
18. The MAC layer transparently transmits all data at and above the MAC layer (link layer), including IP layer data. MAC transparent transmission can solve some special applications for MAC layer encryption, such as AP managed by AC, GoPro camera, Cisco AP, Hikvision monitoring system, etc.
19. Digital analog temperature compensation and frequency stabilization technology are adopted to make WiFi signal more stable and not easy to drop;
20. Working environment temperature: - 20 ℃ to 55 ℃.
|
External interface |
1）USB/DC power supply cable;
2）10/100M Adaptive Ethernet cable;
3）10/100M Adaptive Ethernet port (A dedicated Ethernet port expander can be used) |
|
LED |
Status Indicator:
Ethernet port (cable) Status Light (Yellow);
WiFi Connection Status Light (Green);
System Status Light (Blue); |
|
Antenna |
2*3dBi Whip antennas |
|
Button |
Reset button (Long press 5 seconds then release) |
|
Module Size |
94mm x 45mm x 15mm（L x W x H） |
|
Product Weight |
94g (Including Antennas) |
|
Protocol Standards |
IEEE 802.11AC、IEEE 802.11A、IEEE 802.11N； |
|
WiFi Transmission Rate |
900Mbps |
|
Basic Function |
1) Router mode, support WiFi WAN access and WAN/LAN exchange;
2) Transparent bridge (IP layer transparent, MAC layer transparent);
3) SSID broadcast exchange, WiFi hardware exchange;
4) WiFi mode option: 11AC/AN/A, 11AC/AN, 11A/N, 11A, 11N;
5) WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
6) SSA signal strength detection and reporting function ;
7) Hotspot connection parameter import and export function; |
|
Supported Band |
36、40、44、48、52、56、60、64、100、104、108、112、116、120、124、128、132、136、140、149、153、157、161、165 |
|
WiFi RF Power |
Normal Power: 19dBm;
Enhanced Power: 23dBm. |
|
Compliance acceptance sensitivity |
-85dbm |
|
LNA Sensitivity |
14dBi |
|
Application Method |
WiFi Router;
WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance;
WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission;
WiFi access point (AP); |
|
WiFi Security |
64/128/WEP encryption;
WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism |
|
System Function |
Firmware Upgrade
Reboot device
Reset factory
Account and password revise |
