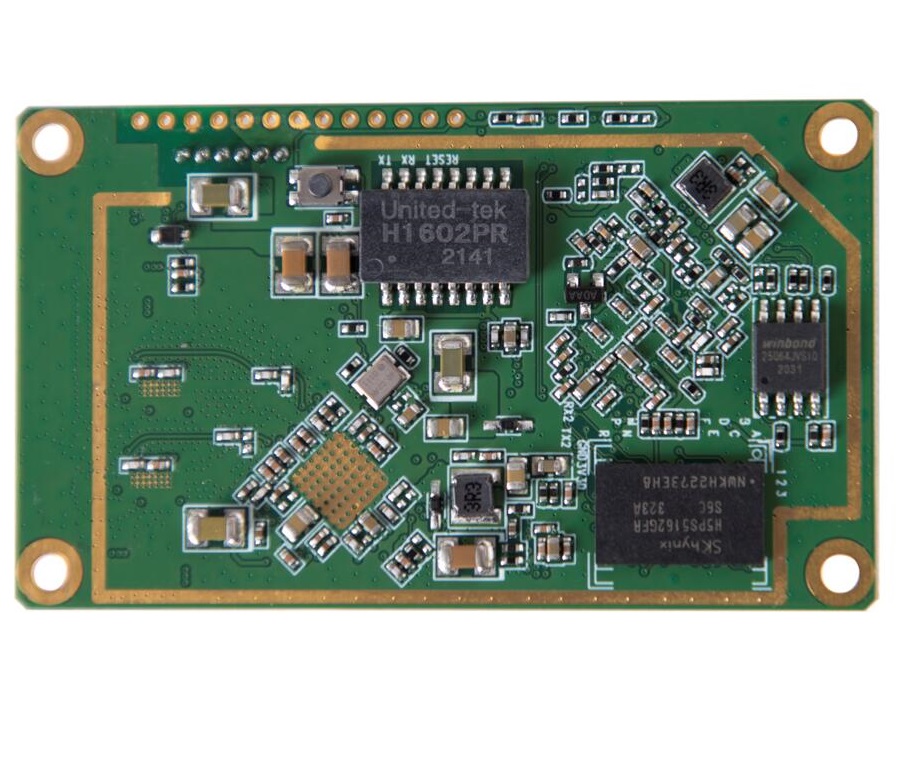

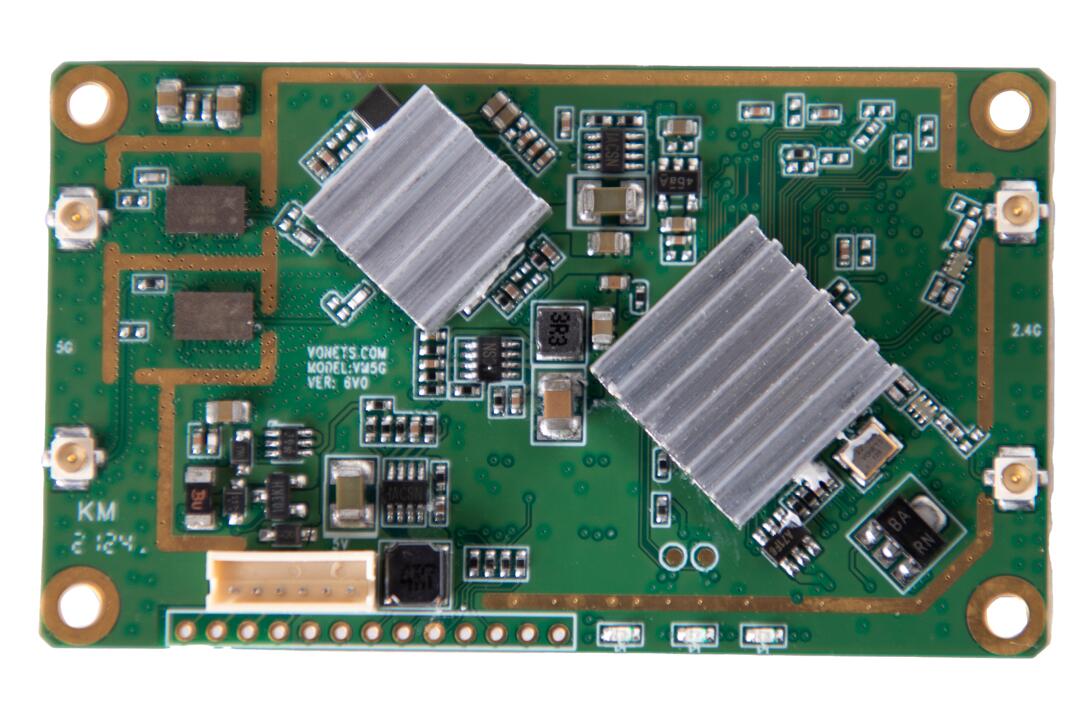

VM5G
Hits:13970

Hardware Features:
1、Support wide voltage DC5V-24V power supply, two-stage automatic over-voltage protection (protection voltage limit 29V);
2、Support power reverse connection protection;
3, the output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV);
4, WiFi working band: 2.4GHz + 5GHz.
Wireless transmission rate: 300Mbps (2.4G) + 900Mbps (5G);
6, Transmit power: 2.4G is 17dBm/18.5dBm, 5G is 19dBm/22dBm optional;
7, point-to-point pairing barrier-free maximum transmission distance: 2.4GHz: 30m-100m, 5GHz: 100-400m;
8, the module comes with intelligent automatic start-stop cooling fan control interface (standard configuration does not include a fan).

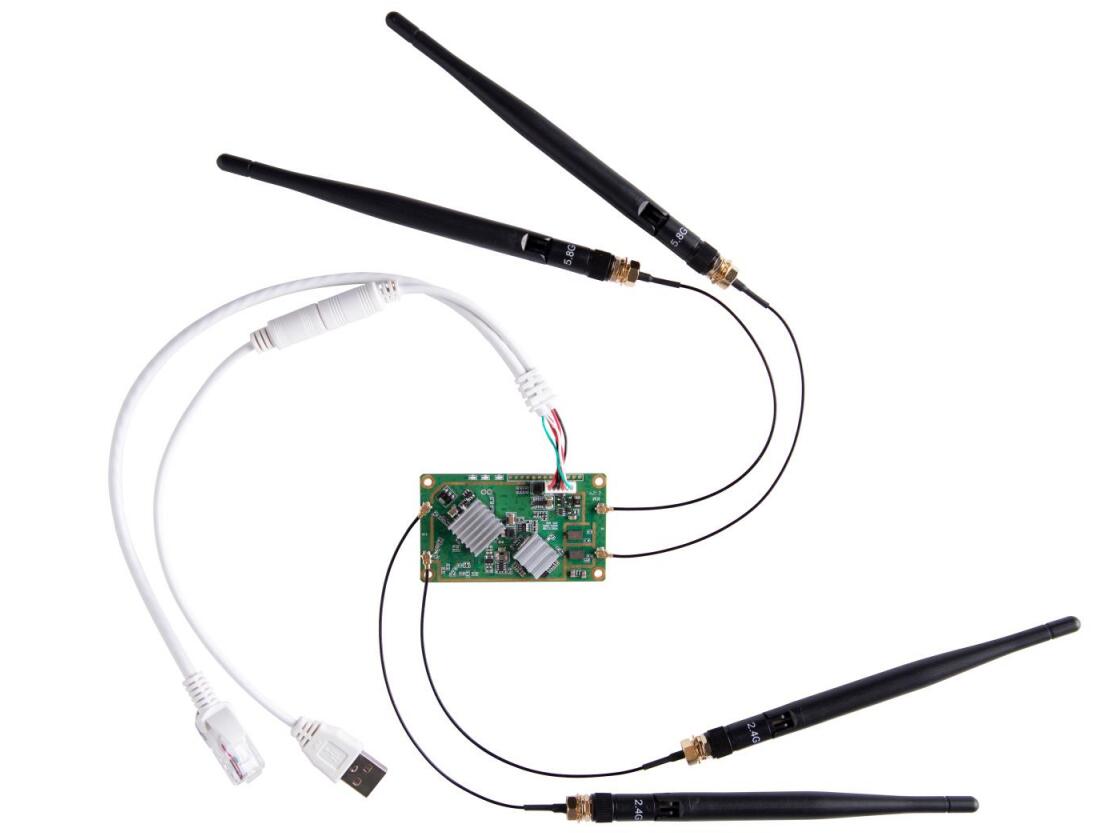

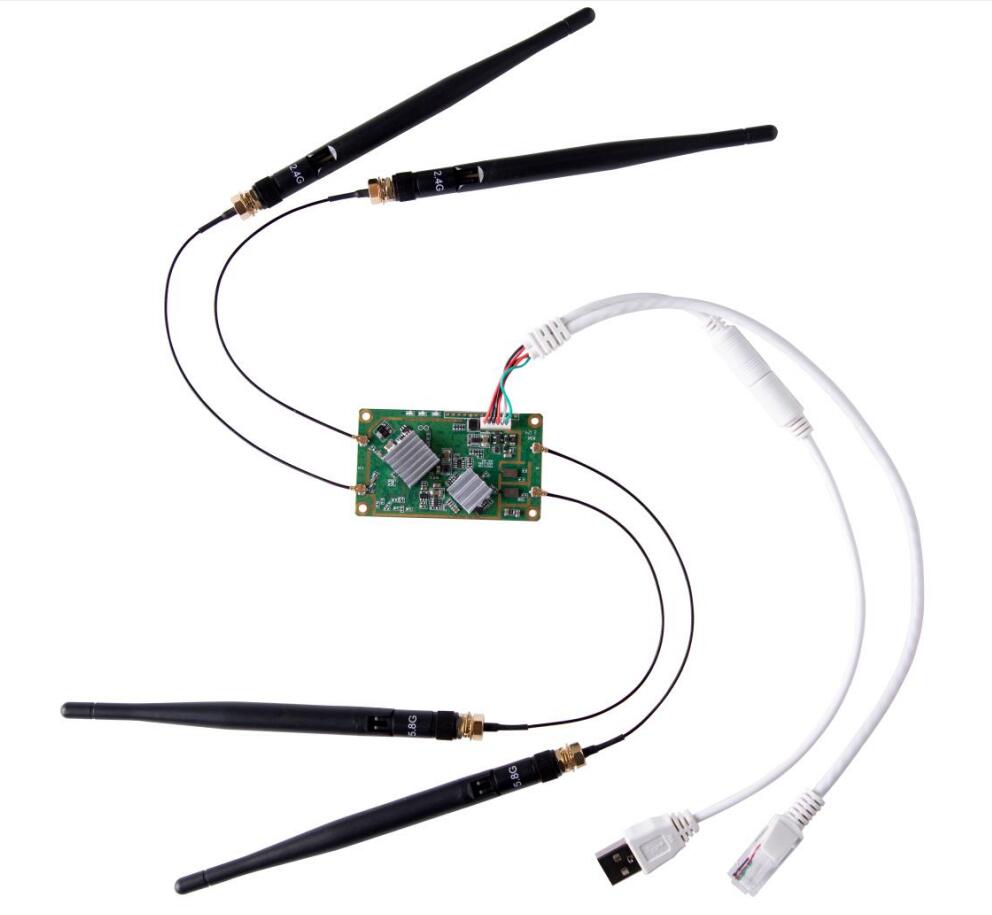

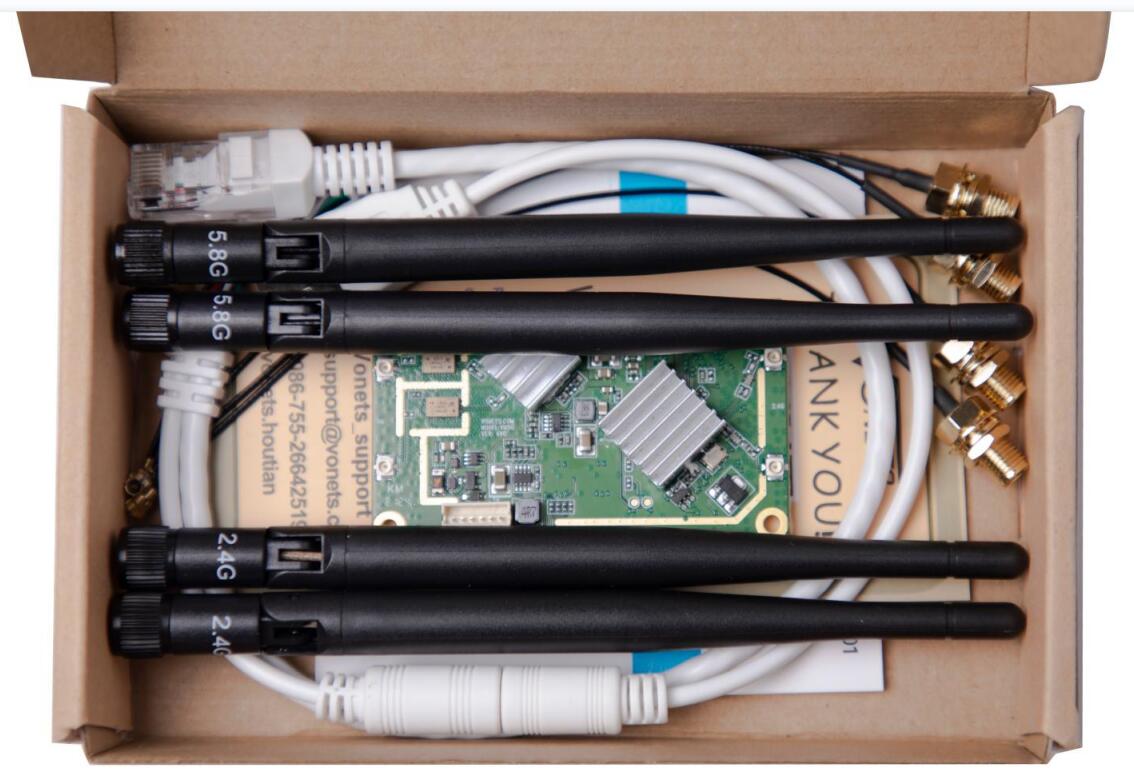

9, standard external antennas: 2 3dBi 5G antennas, 2 3dBi 2.4G antennas;
10, provide a TTL level (3.3V) UART data transmission interface;
11, the use of digital and analog temperature complementary frequency stabilization technology, WiFi signal is more stable and less likely to fall off;
12、Operating ambient temperature: -20℃ to 55℃.

Function Features:
1.  Support router and bridge repeater mode;
2.  In router mode, support WiFi WAN access;
3.  In router mode, support WAN/LAN exchange of wired network ports;
4.  Support WiFi smart bridge repeater, can achieve WiFi to wired, wired  to WiFi function;
5.  Support 802.11ac, 802.11a, 802.11n and so on transmission protocol;
6.  Support UART/UDP data transmission;
7.  Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
8.  WiFi hotspot memory, maximum memory 100 hotspots;
9.  Support connecting more than 20pcs WiFi terminal at the same time;
10. Support SSA protocol, built-in hotspot signal strength detection and reporting function to realize WiFi mobile positioning;
11. Support hotspot forced disable, WiFi hardware forced disable;
12. Hotspot connection parameter import and export function;
13. Adopt VDNS virtual domain configuration technology to solve the user’s trouble of configuration;
14. Support WEB management, Chinese and English configuration interface;
15. Support upgrade online;
16. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications:
IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge applications;
MAC layer transparent transmission all data above the MAC layer (link layer) and the MAC layer, including IP layer data; MAC transparent transmission can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring, system, etc.

Hardware Spec

LED

Status Indication:

Ethernet Port Status Light (Yellow);

2.4G WiFi Connection Status Light (Blue);

5G WiFi Connection Status Light (Green);

Antenna Interface

2*3dBi 2.4G Whip antennas

2*3dBi 5G Whip antennas

Module Size

65mm x 38mm x 8.3mmL x W x H

Module Weight(Including Antennas)

115g

WiFi Related

Protocol Standard

IEEE 802.11ac, IEEE 802.11a;

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b;

WiFi Transmission rate

2.4GHz band: 300Mbps

5GHz band: 900Mbps

Basic Function

1) Router mode, support WiFi WAN access and WAN/LAN exchange;

2) Transparent bridge (IP layer transparent, MAC layer transparent);

3) WiFi Hotspot exchange, WiFi hardware exchange;

4) 2.4G WiFi mode option: 11B/G/N, 11B/G, 11N, 11G, 11B; 5G WiFi mode option: 11AC/AN/A, 11AC/AN, 11A/N, 11A, 11N;

5) WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;

6) WiFi hotspot memory, maximum memory 10 hotspots;

7) SSA signal strength detection and reporting function ;

8) Hotspot connection parameter import and export function;

Supported Band

2.4G band channel: 1-14;

5G band channel: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 161, 165

WiFi RF Power

2.4G: Normal Power: 15dBm; Enhanced Power: 16.5dBm;

5G: Normal Power: 19dBm; Enhanced Power: 23dBm.

Compliance acceptance sensitivity

-69dbm (2.4G)

-75dbm (5G)

LNA Sensitivity

14dBi

Application Method

WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance;

WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission;

WiFi access point (AP);

WiFi Security

64/128/WEP security;

WPA-PSK/WPA2-PSK, WPA/WPA2 Security mechanism;

System Function

Firmware Upgrade

Reboot device

Reset factory

Account and password revise
